Внутренний монитор и SIP видео телефон функция предварительного просмотра видео Введение

Введение

Обзор

В этом документе описывается функция предварительного просмотра видео для комнатных мониторов и SIP-видеотелефонов. Функция предварительного просмотра видео позволяет вызываемому устройству отображать видео вызывающего абонента до ответа на вызов. Она широко используется для вызовов от домофонов, позволяя пользователям проверить посетителей перед ответом или открытием двери.

Применимые модели

Все комнатные мониторы и видеотелефоны нашей компании.

Как работает предварительный просмотр видео

Поддерживаются два режима предварительного просмотра:

  • Режим Preview 18x: Видеосоединение устанавливается с использованием данных SDP, передаваемых в сигнализации SIP 18x во время звонка, что позволяет просматривать видео до ответа на вызов.

  • Режим Preview 2xx: Первое сообщение 200 OK устанавливает только видео (без аудиовызова). Второе 200 OK отправляется, когда пользователь отвечает, для установления полнодуплексного вызова.

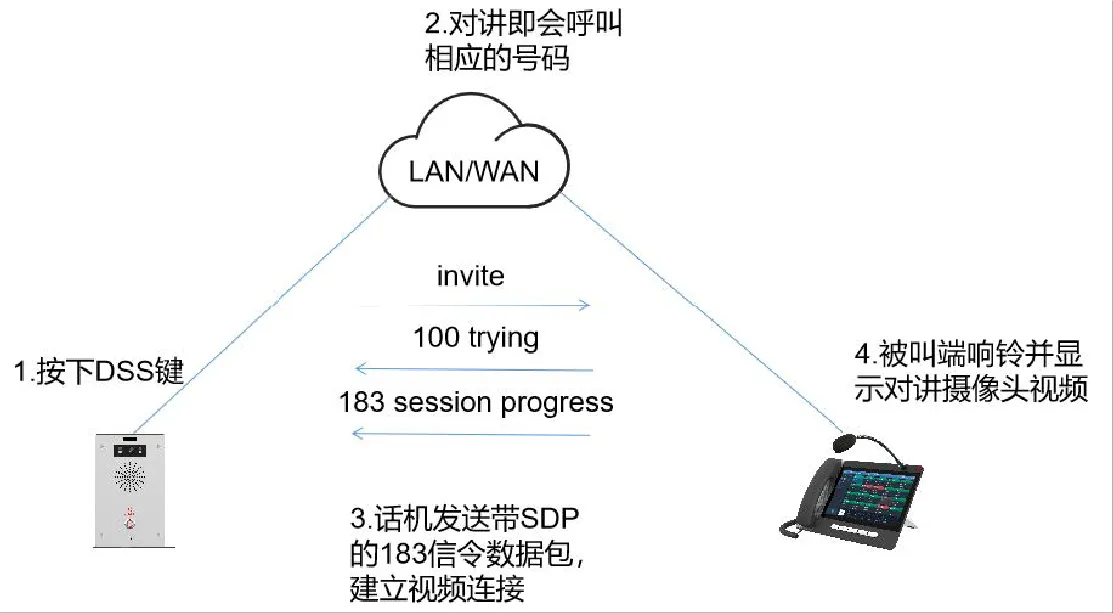

Video Preview 18x Mode

Режим предварительного просмотра видео 18x

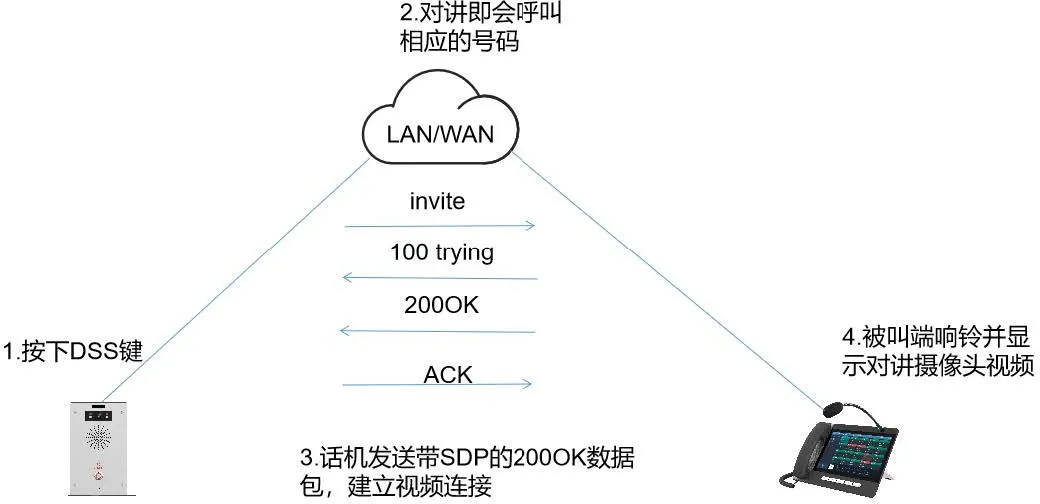

Video Preview 2xx Mode

Режим предварительного просмотра видео 2xx

Сценарии применения

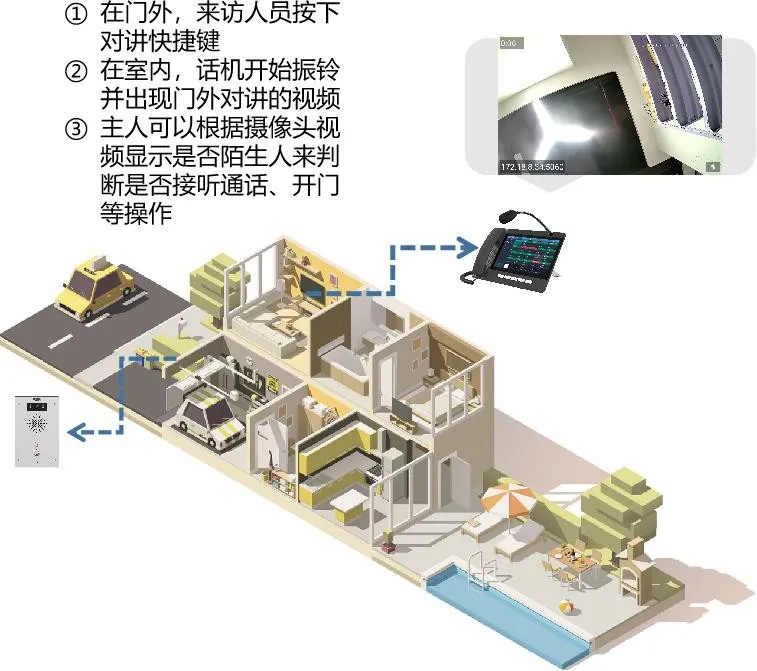

Video Preview Application Scenario

Предварительные требования

  1. Убедитесь, что ваше устройство является видеотелефоном или комнатным монитором.

  2. Подготовьте компьютер для настройки, подключенный к той же локальной сети, что и видеоустройства.

Схема подключения

Пример сетевого подключения (BHP-SOS16, IP-телефон, ПК):

Device Connection Diagram

Руководство по эксплуатации

Поддерживаются два режима вызова: точка-точка (P2P) и вызов через SIP-сервер. Настройка зависит от режима вызова. В качестве примеров используем i16V и A32i.

Настройка предварительного просмотра видео для вызова точка-точка

  1. Войдите в веб-интерфейс устройства.

  2. Перейдите в Линия → Основные настройки.

  3. Отметьте Включить предварительный просмотр и выберите режим (по умолчанию: Preview 18x).

  4. Нажмите Применить, чтобы сохранить настройки.

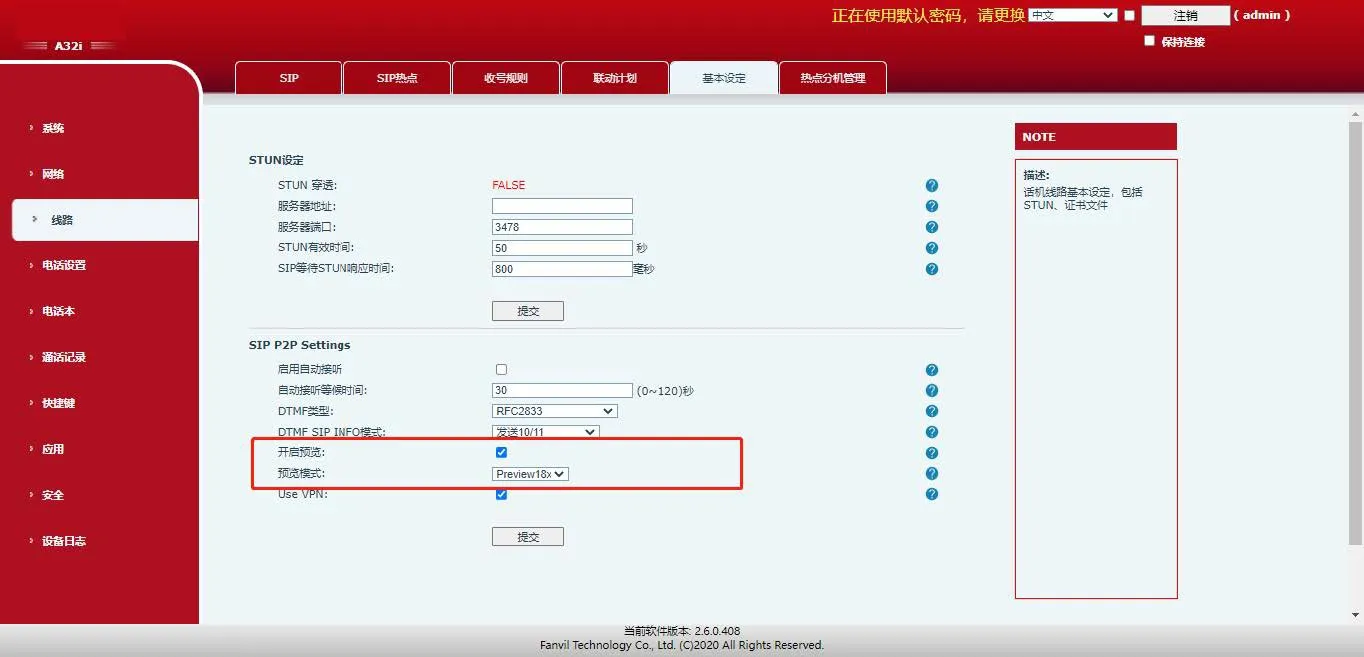

P2P Call Video Preview Configuration

Настройка предварительного просмотра видео для вызова с SIP-учетной записью

  1. Войдите в веб-интерфейс устройства.

  2. Перейдите в Линия → SIP → Расширенные настройки.

  3. Отметьте Включить предварительный просмотр и выберите режим (по умолчанию: Preview 18x).

  4. Нажмите Применить, чтобы сохранить настройки.

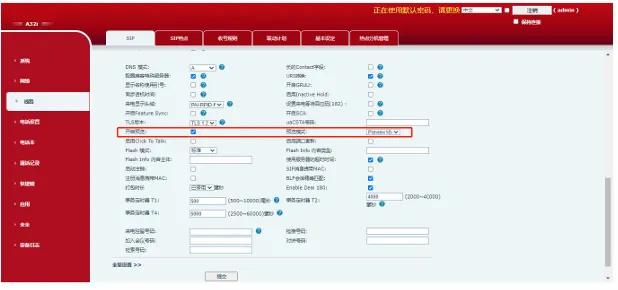

SIP Account Call Video Preview Configuration

Частые проблемы и решения

  1. Сбой группы вызова с некоторыми SIP-серверами
       Если предварительный просмотр видео приводит к отсутствию видео или автоматическому отбою в группах вызова, отключите предварительный просмотр.

  2. Сервер Beke несовместим с режимом 18x
       Если версия сервера Beke < 18.5.28, переключитесь на Preview 2xx или обновите сервер.

  3. Ранние медиа отключены на сервере
       Свяжитесь с вашим провайдером сервера, чтобы включить Early Media.
