Overview

Effective communication is crucial during emergency situations. When disasters strike – whether natural (earthquakes, floods, hurricanes) or man-made (industrial accidents, terrorist attacks) – reliable communication links enable first responders, emergency managers, and affected communities to coordinate response efforts, share critical information, and ensure public safety. This report provides a comprehensive overview of an emergency response communication solution, including the technical requirements, available communication techniques and systems, software and digital tools, architectural considerations, and case studies of real-world deployments.

Requirements for Emergency Communication

Emergency communication systems must meet several stringent requirements to function under challenging conditions:

• Resilience and Reliability: The network and devices must operate reliably even when infrastructure is damaged or compromised. Redundant links and failover mechanisms are essential to maintain connectivity in adverse conditions.
• Speed and Bandwidth: Timely communication is critical. The solution must provide sufficient bandwidth to handle voice, video, and data traffic in real time, without delays that could endanger lives.
• Coverage: It must cover the affected area and beyond. This often means spanning both local networks and wide-area networks (WAN) or even global satellite coverage if local infrastructure fails.
• Interoperability: Different agencies and devices must be able to communicate with each other. Interoperable standards ensure that firefighters, police, medical teams, and others can all share information on a common platform.
• Security: Communications must be secure to prevent unauthorized access or interference. Encryption and secure protocols are necessary to protect sensitive information and maintain trust.
• Adaptability: The system should adapt to changing circumstances. For example, it might need to quickly establish ad-hoc networks when cellular towers are down or to scale up during large emergencies.
• User-friendly: Equipment and software should be easy to use under high stress and limited training. Simplicity and familiarity (e.g. using familiar radio interfaces) can improve usability in chaotic situations.

Meeting these requirements often involves a combination of different communication technologies working in tandem – a hybrid approach that leverages the strengths of each solution.

Communication Techniques and Systems

Emergency response communications rely on a variety of techniques and systems, including wireless mesh networks, cellular networks, satellite communications, radio systems, and public alerting systems. Below we discuss each of these in detail:

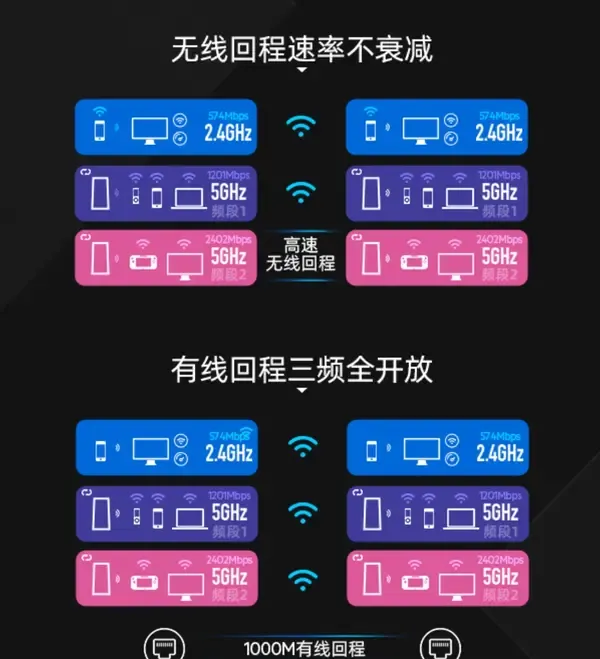

1. Wireless Mesh Networking

Overview: A wireless mesh network (WMN) is a decentralized network of wireless nodes (routers, access points) that relay data between each other. In an emergency, mesh networks can be deployed quickly to provide local connectivity when traditional wired networks are unavailable. Each mesh node acts as both a client and a router, forwarding traffic to other nodes until it reaches a gateway to the broader network.
How It Works: Nodes in a mesh network form a peer-to-peer network. If one node’s signal is blocked, traffic can route through other nodes, creating a resilient “multi-hop” path. This redundancy makes mesh networks highly robust against single-point failures. In emergency scenarios, responders can deploy mesh routers or even smartphones running mesh software to create a temporary network that spans a disaster area.
Use Cases: Wireless mesh has been used in several disaster response efforts. For example, after Hurricane Sandy in 2012, emergency responders set up wireless mesh networks to provide internet access to first responders in the field. Mesh networks have also been used in wildfire and earthquake response to connect firefighters’ devices and provide local communication hubs. One advantage is that mesh networks can be deployed quickly – often in under an hour – and can cover large areas without the need for infrastructure like fiber or towers.
Advantages:

• Flexibility: Mesh networks can be set up ad-hoc in minutes, allowing rapid deployment in disaster zones.
• Resilience: The network topology provides self-healing and redundancy, ensuring communication continues even if some nodes or links fail.
• Scalability: Additional nodes can be added to expand coverage as needed, and the network can adapt to changing terrain or evacuation routes.
• Self-Organizing: Mesh networks organize themselves automatically, which is helpful when responders have limited setup time.

Limitations:

• Bandwidth: Each hop introduces some delay and potential bottleneck. Mesh networks may not provide the same bandwidth as a wired network or a direct wireless link, which can be a concern for high-bandwidth applications like streaming video.
• Range: The effective range of each node is limited by line-of-sight and interference. In very large areas, multiple nodes may be needed to achieve full coverage.
• Security: Wireless mesh networks can be vulnerable to interference or jamming. They typically use encryption (e.g. WPA2/WPA3) to secure data, but securing an ad-hoc network can be challenging.
• Setup and Maintenance: While quick to deploy, mesh networks require technical setup and management. Ensuring all nodes are properly configured and have power (e.g. via batteries or generators) is important for long-term operation.

2. 5G / 4G / 3G Cellular Networks

Overview: Cellular networks (especially 4G LTE and newer 5G) are the backbone of modern emergency communications for the public and first responders. These networks are widely available in urban and rural areas and provide high-speed data, voice, and text services. First responders often rely on cellular networks to coordinate with dispatch centers, share location data, and access databases. In many countries, dedicated emergency networks (such as FirstNet in the US or dedicated bands in other countries) are being deployed to ensure priority access for responders during emergencies.
Use Cases: During a disaster, first responders use their smartphones and tablets on the cellular network to communicate with command centers and each other. For example, firefighters can send real-time location updates to dispatch, or paramedics can report patient status. The public can also use cellular networks to receive emergency alerts (like AMBER Alerts or severe weather warnings) via SMS or apps. In areas with no local infrastructure, first responders can tether to a portable 4G/5G router to connect to the internet and communicate.
Advantages:

• Broad Coverage: Cellular networks cover most populated areas, providing a familiar and widely accessible communication channel.
• High Bandwidth: 4G and 5G offer much higher data speeds than older networks, enabling real-time video streaming, data sharing, and even remote monitoring from the field.
• Voice and Data: They support both voice calls and data services, allowing responders to make voice calls, send text messages, and access the internet on the same device.
• Interoperability: Modern smartphones and radios can connect to cellular networks, enabling interoperability between different agencies (police, fire, EMS) who may use different radio systems by using the common cellular network.

Limitations:

• Capacity and Congestion: During a large emergency, cellular networks can become congested. High demand can lead to dropped calls or slow data speeds. This is a significant issue – as illustrated in the chart below, network congestion is a major concern during emergencies, often outpacing the network’s capacity.

• Infrastructure Dependency: Cellular networks rely on cell towers and backhaul. If these are damaged or overwhelmed, cellular service can be lost or degraded. In some cases, responders may need to provide their own backup power for towers or use alternative networks.
• Security: Public cellular networks are not inherently secure for sensitive communications. Encryption is used (4G/5G are encrypted), but for truly secure communications, responders may need to use dedicated channels or devices.
• Access Requirements: Devices must be compatible with the network and have a SIM card. During a disaster, some devices may not work if the network is overloaded or if the device battery runs out.

3. Satellite Communication

Overview: Satellite communication provides global connectivity that is independent of terrestrial infrastructure. In emergency response, satellites are invaluable when local networks fail or when responders are in remote, hard-to-reach areas. Satellites can relay voice, data, and video signals across vast distances, making them ideal for disasters in rural regions, at sea, or in the aftermath of infrastructure damage.
How It Works: Satellites orbit the Earth and act as relays for signals. A ground terminal (like a satellite phone or a satellite modem) sends a signal up to the satellite, which then beams it down to another terminal. Because of the high altitude of most satellites, communication can cover large areas. For example, a single geostationary satellite can cover about 40% of the Earth’s surface. Low Earth Orbit (LEO) satellites (which orbit closer to Earth) provide faster communication and lower latency, but require more satellites in orbit to maintain coverage.
Use Cases: Satellite communication is used extensively in emergency response. During Hurricane Maria in 2017, many Puerto Ricans relied on satellite phones and internet services to stay connected when the power grid and cellular towers were down. In wildfires, fire crews sometimes use satellite phones to call for backup or report to command centers. The military and NGOs also use satellite terminals to coordinate relief efforts in disaster zones. Satellite internet (e.g. Starlink) has also been deployed during disasters to provide internet access to emergency teams and affected communities.
Advantages:

• Global Coverage: Satellites provide coverage even in remote or isolated areas where no other network exists. This is crucial for search and rescue operations in forests, mountains, or at sea.
• Reliability: Satellite links are less affected by local disasters than terrestrial networks. As long as the satellite is functional, communication can continue. Some constellations (like Iridium) have redundancy with multiple satellites to ensure continuous service.
• Quick Deployment: Satellite terminals can be deployed rapidly (often within hours). This is important for establishing communication in the immediate aftermath of a disaster when local infrastructure is destroyed.
• Bandwidth and Services: Modern satellite systems offer a range of services – voice calls, text messaging, and even broadband internet (via satellite modems). This means responders can send large data files, video feeds, and access cloud-based resources from anywhere.

Limitations:

• Latency: Communication via satellite can have significant latency (delay). For example, geostationary satellites are about 36,000 km away, leading to around 0.25 seconds one-way delay. While this is manageable for voice, it can be problematic for real-time interactive applications. LEO satellites reduce latency but still have some delay.
• Cost: Satellite communication is expensive. Satellite phones and internet modems can be costly to purchase and operate, and data usage on satellite networks is often metered and expensive. This can be a limitation for long-term deployments.
• Line-of-Sight: Ground terminals must have a clear line-of-sight to the satellite. Obstructions like buildings or trees can block the signal, requiring terminals to be positioned to face the sky. In urban areas, this can be a challenge.
• Weather: Extreme weather can affect satellite signals. Heavy rain or storms can interfere with the microwave signals between the terminal and the satellite.
• Equipment Size: Traditional satellite phones and dishes can be bulky and heavy. This can be a drawback in field operations where mobility is key. Newer devices (like satellite-enabled smartphones) are more portable but still require clear sky access.

4. UHF / VHF Communication

Overview: Ultra-High Frequency (UHF) and Very-High Frequency (VHF) radio systems are widely used by first responders for voice communications. These are narrowband radio systems operating on dedicated frequencies, providing reliable, short-range voice communication with low latency. UHF and VHF radios are a staple in emergency services – police, fire, ambulance, and military often use these radios to communicate on the scene.
How It Works: UHF/VHF radios operate on frequencies typically between 30 MHz and 3 GHz. They use analog or digital modulation to transmit audio and data. In analog systems, the voice is modulated onto the radio frequency; in digital systems (like DMR or P25), voice is encoded into digital packets. Radios communicate within a specific frequency band and can talk directly to each other (point-to-point) or via repeaters (point-to-multipoint). In an emergency, responders can switch their radios to an emergency channel to get immediate attention.
Use Cases: UHF/VHF radios are used for a wide range of emergency communications. Firefighters use them to coordinate firefighting operations, police use them for tactical communications, and paramedics use them to stay in contact with dispatch. Because they don’t rely on the internet or cellular networks, they work even when those are down. They are also used in conjunction with other systems – for example, a firefighter might use a radio to talk to team members on scene and a satellite phone to call for backup or report to a remote command center.
Advantages:

• Reliability: UHF/VHF radios are known for their reliability. They have a long history of use in critical communications and are designed to operate in harsh conditions. They can often continue working even in the presence of electromagnetic interference or after a disaster.
• Low Latency: Voice communications are immediate – there is no need to wait for network setup or handshakes. This makes UHF/VHF ideal for real-time coordination on the scene.
• Simple and Robust: Radios are simple to use, with basic controls that first responders are trained to use under stress. They are also relatively rugged and can survive in adverse weather or rough handling.
• Localized Coverage: UHF radios have shorter range (typically a few kilometers in open areas, but much less in urban canyons or wooded areas) which can help focus communications on the immediate incident. VHF has a longer range (often tens of kilometers) but is less suitable for urban use due to signal blockage.

Limitations:

• Limited Bandwidth: Narrowband UHF/VHF systems can carry only voice (and limited data). They are not designed for high-bandwidth applications like video or large data transfers.
• Range and Obstacles: As mentioned, range is limited and terrain and obstacles can block signals. Repeaters can extend range, but setting up repeaters in a disaster zone may not be feasible immediately.
• Interoperability: Different agencies or regions may use different radio frequencies and systems. This can lead to interoperability issues unless there is a common standard or cross-band repeaters.
• Capacity: UHF/VHF systems can handle a limited number of simultaneous calls. In large incidents with many responders, the channel may become congested.
• Security: Traditional analog UHF/VHF radio signals can be intercepted. Modern digital systems (like P25 Phase 2 or DMR) use encryption to secure communications, but not all agencies have implemented encryption, and analog systems remain in use.

5. Public Alerting Systems

Overview: Public alerting systems are designed to warn the general public of impending dangers or emergencies. These systems broadcast alerts via multiple channels – including emergency alert radios, text messages, mobile apps, and even sirens – to ensure that people receive timely information. Public alerting is a crucial part of emergency communication, complementing the communication needs of responders by reaching the public.
How It Works: Public alert systems are typically managed by government agencies (e.g. the Emergency Alert System in the US or the European Emergency Call System). They use a network of transmitters to send out alerts. For example, emergency alert radios (NOAA Weather Radios in the US) constantly monitor a specific frequency and will sound an alarm and broadcast the alert message when a severe weather warning or other emergency is issued. In addition, wireless emergency alerts (WEA) in the US use the cellular network to send text messages (up to 90 characters) to mobile phones in the area of an emergency (such as AMBER Alerts, severe weather warnings, etc.).
Use Cases: Public alert systems are used for a variety of emergencies. During a hurricane, the local government might activate the NOAA Weather Radio to broadcast evacuation orders. During a terrorist attack or active shooter situation, authorities might send a mobile alert to phones in the affected area. In Japan, the Emergency Alert System (EAS equivalent) is used to warn of tsunamis, earthquakes, and other disasters. These systems ensure that even if people are not watching TV or listening to a radio, they still receive critical information on their phones.
Advantages:

• Widespread Reach: Public alert systems can reach millions of people in a short time. They use multiple channels (TV, radio, cellular, etc.) to maximize coverage.
• Timeliness: Alerts are broadcast immediately when an emergency is declared, giving people precious time to take action (e.g. evacuate or seek shelter).
• Simplicity: The alerts are designed to be simple and hard to ignore. For example, a weather radio alarm is very loud and the message is clear, and a mobile alert will often pop up on the screen of a phone even if it’s locked.
• Non-Selective: Unlike text messages which require users to opt-in, public alerts are non-selective. Everyone within range of the broadcast receives the alert, which is important for ensuring public safety.

Limitations:

• Device Dependence: For mobile alerts, users must have a phone that is capable of receiving wireless emergency alerts. If someone’s phone is off or out of range, they may not get the alert.
• False Alarms: There is a risk of false alarms, which can desensitize the public. Agencies must ensure proper procedures to avoid false alerts.
• Language and Accessibility: Public alerts must be communicated in a way that is understood by all. This can be challenging for multilingual communities or those with disabilities (e.g. visual or hearing impairments).
• Bandwidth: Sending mass alerts over cellular networks can consume significant bandwidth, which could affect normal network operations during an emergency.

6. Other Alternatives

In addition to the above, there are several other communication alternatives used in emergency response:

• Public Address Systems: These include sirens, megaphones, and public address systems in buildings. They are used to warn people in the immediate vicinity of an emergency (e.g. fire alarms in a building, sirens for evacuation). While not for long-distance communication, they are vital for alerting people in the immediate area.
• Social Media and Messaging Apps: In recent years, social media platforms and messaging apps have become channels for emergency communication. During disasters, agencies and volunteers use Twitter, Facebook, and WhatsApp to share information (like evacuation routes, shelter locations, and updates). These platforms can be powerful for reaching the public, but they are not guaranteed to be reliable or accessible during outages, and information can be unverified.
• Ham Radio and Volunteer Networks: Amateur radio operators (hams) often play a role in emergency communications. They can set up temporary networks to connect remote areas. Ham radios can communicate via shortwave or VHF and have been used in many disasters (e.g. after Hurricane Katrina, hams provided communication in areas where other networks were down).
• Mobile Ad-hoc Networks (MANETs): These are similar to wireless mesh networks but specifically refer to networks formed by mobile devices (smartphones, laptops) that create a temporary network. MANETs can be used when no infrastructure is available – for example, a group of first responders could use their phones to form a network and share data.
• Public Alerting and Notification Systems: Beyond the government-run systems, some cities and organizations have their own emergency alert systems (for example, school alert systems or business emergency alert systems). These can be integrated to provide a unified warning network.

Each of these alternatives has its own strengths and weaknesses, and many emergency response agencies use a combination to ensure comprehensive communication coverage.

Software and Digital Tools

Effective emergency response also relies on specialized software and digital tools that enhance communication, coordination, and decision-making. These tools can include dashboards for situational awareness, mapping and location tracking systems, AI-driven analytics, communication software for teams, and cloud-based platforms for data sharing. Below are key software and tools used in emergency response:

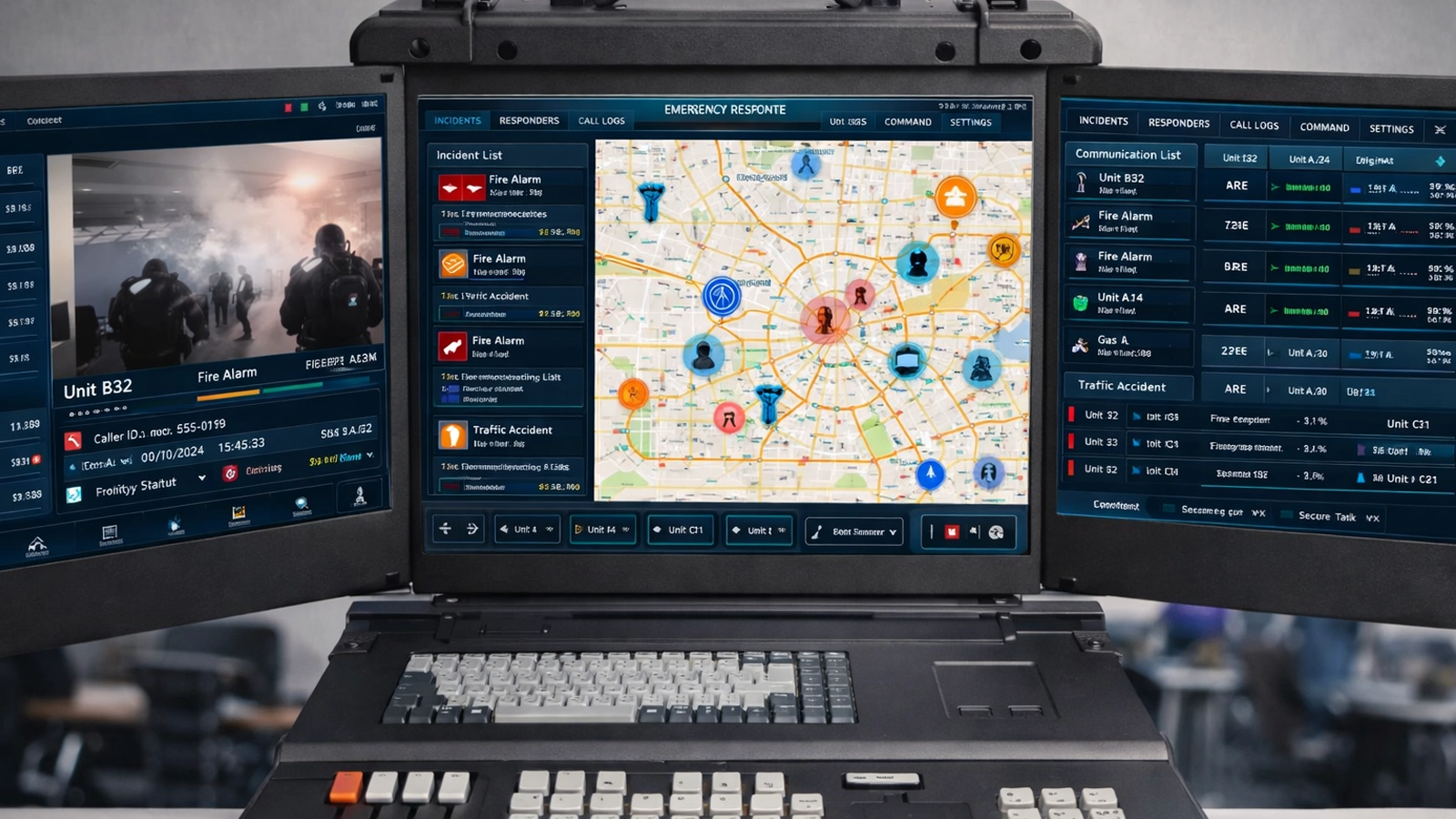

1. Dashboards and Visualization

Overview: Emergency command centers use real-time dashboards to display critical information about the incident. These dashboards aggregate data from various sources – such as GPS locations of responders, sensor data from the field, maps of the affected area, and status updates from different agencies – into a single, intuitive interface. This allows emergency managers to quickly assess the situation and make informed decisions.
Examples: During a wildfire, a dashboard might show the locations of fire crews on the map, the current fire perimeter, weather conditions, and resource availability. In a disaster like an earthquake, a dashboard could display the locations of people requesting help (from 911 calls or apps), the status of infrastructure (power outages, road closures), and the deployment of emergency resources. Modern dashboards often use interactive maps, charts, and color-coded indicators to highlight key information.
Benefits: Dashboards provide a common operating picture for all responders, ensuring everyone is on the same page. They improve situational awareness and enable faster response by giving managers a high-level view of the situation and allowing them to drill down into details as needed. Visualization tools can also help in identifying trends (e.g. which areas are most affected) and prioritizing actions.

2. Mapping and Location Tracking

Overview: Accurate mapping and location tracking are essential for emergency response. GIS (Geographic Information System) software allows responders to plot incidents on maps, overlay relevant data (like roads, buildings, evacuation routes), and track the movement of assets and personnel. Location tracking systems use GPS and other technologies to keep tabs on the location of first responders, vehicles, and even victims in real time.
Examples: A responder’s smartphone or GPS-enabled device can report its location to a central server, which updates a map in real time. This helps commanders know where each team is positioned. In a search and rescue scenario, search teams can use GPS to record their progress and send back waypoints. Mapping software can also integrate with sensors – for instance, live video feeds from drones can be overlaid on a map to show the current state of a disaster site.
Benefits: Real-time location tracking improves coordination and safety. It allows managers to deploy resources efficiently and to ensure that help is directed to the right place at the right time. Mapping tools also help in planning response strategies (e.g. identifying the fastest routes to an incident or areas most in need of aid).

3. AI and Automation

Overview: Artificial Intelligence (AI) and automation are increasingly being applied to emergency response to enhance communication and decision-making. AI can analyze large volumes of data quickly, predict outcomes, and even automate certain tasks. For example, AI algorithms can sift through emergency calls or social media posts to identify urgent needs or to predict the spread of a disaster (like a wildfire or disease outbreak).
Examples: Some systems use AI to detect anomalies in sensor data – for instance, a sudden spike in temperature or unusual traffic patterns that could indicate a hazardous event. AI can also be used for natural language processing to summarize emergency messages or to provide real-time translation of communications in different languages. Automation can include things like automatic alerting (if certain conditions are met, an alert is sent without human intervention) or robotic assistance (like drones that can be remotely controlled to assess a disaster site).
Benefits: AI can process information faster than humans, leading to quicker response times. It can also reduce human error and bias in decision-making. For example, AI might be used to help dispatch prioritize which emergency calls to handle first based on severity. Automation can free up human operators to focus on more complex tasks by handling routine communications or alerts automatically.

4. Communication Software

Overview: Beyond radios and phones, specialized software is used to facilitate communication among emergency response teams. This includes group chat applications, messaging platforms, and collaboration tools that allow responders to send text messages, share files, and even conduct video conferences. These tools often integrate with the overall system – for example, sending an emergency message to a group of responders on a messaging app can be done from the same dashboard that tracks their locations.
Examples: Many emergency services use apps like Slack or custom-developed communication apps that are secure and optimized for offline use. In some cases, responders might use a secure group chat to share photos and updates from the field. Video conferencing tools (like Zoom or Microsoft Teams) are used to connect remote command centers or to have virtual meetings with experts or off-site agencies.
Benefits: Communication software allows for more flexible and detailed communication than traditional radios. Team members can share detailed information (like photos, documents, live video) and coordinate in real time. This can be especially useful when responders are spread out or when multiple agencies need to collaborate. Some tools also have features like encryption and offline support, ensuring that communication remains possible even in challenging conditions.

5. Integration and Cloud

Overview: Modern emergency response solutions often leverage cloud computing and integration of various systems. Cloud-based platforms allow different software tools to communicate with each other and to share data in real time. This means that, for example, location data from a responder’s GPS can feed into a dashboard and also trigger an alert if the responder is in danger.
Examples: Cloud-based emergency management systems can integrate GPS tracking, incident reporting, and communication modules into one platform. Data from a wireless mesh network can be sent to the cloud, where it is processed and made available to all authorized users. Similarly, cloud services can store and share incident reports, maps, and other information so that teams can access the latest data from anywhere.
Benefits: Integration and cloud computing enable a unified and scalable system. Data can be centralized, making it easier to maintain and update. It also allows for better collaboration, as different agencies or teams can access the same information simultaneously. Cloud solutions are also often more scalable – they can handle sudden spikes in data (like during a large disaster) without performance degradation, and they can be accessed from any location with an internet connection.
In summary, software and digital tools play a pivotal role in emergency response communication by providing situational awareness, improving coordination, and enabling faster, more informed decision-making. These tools, when combined with the appropriate communication technologies, form a comprehensive solution for managing emergencies effectively.

Architecture and Deployment Considerations

Deploying an emergency response communication solution involves careful planning of network architecture and infrastructure. Key considerations include network topology, redundancy, scalability, security, interoperability, and remote access. Here we outline these architectural considerations:

1. Network Architecture

The network architecture should be designed to support the required communication needs. Common architectures for emergency networks include:

• Hierarchical: A central hub (like a command center) connected to multiple remote sites or nodes. This is often used in traditional command structures, where remote teams report to a central base. It provides a clear chain of command but may be vulnerable if the central hub is compromised.
• Mesh: A peer-to-peer network where all nodes are interconnected. As discussed earlier, mesh networks can be deployed as needed, with nodes forming connections on the fly. This architecture is very resilient and flexible, suitable for ad-hoc networks.

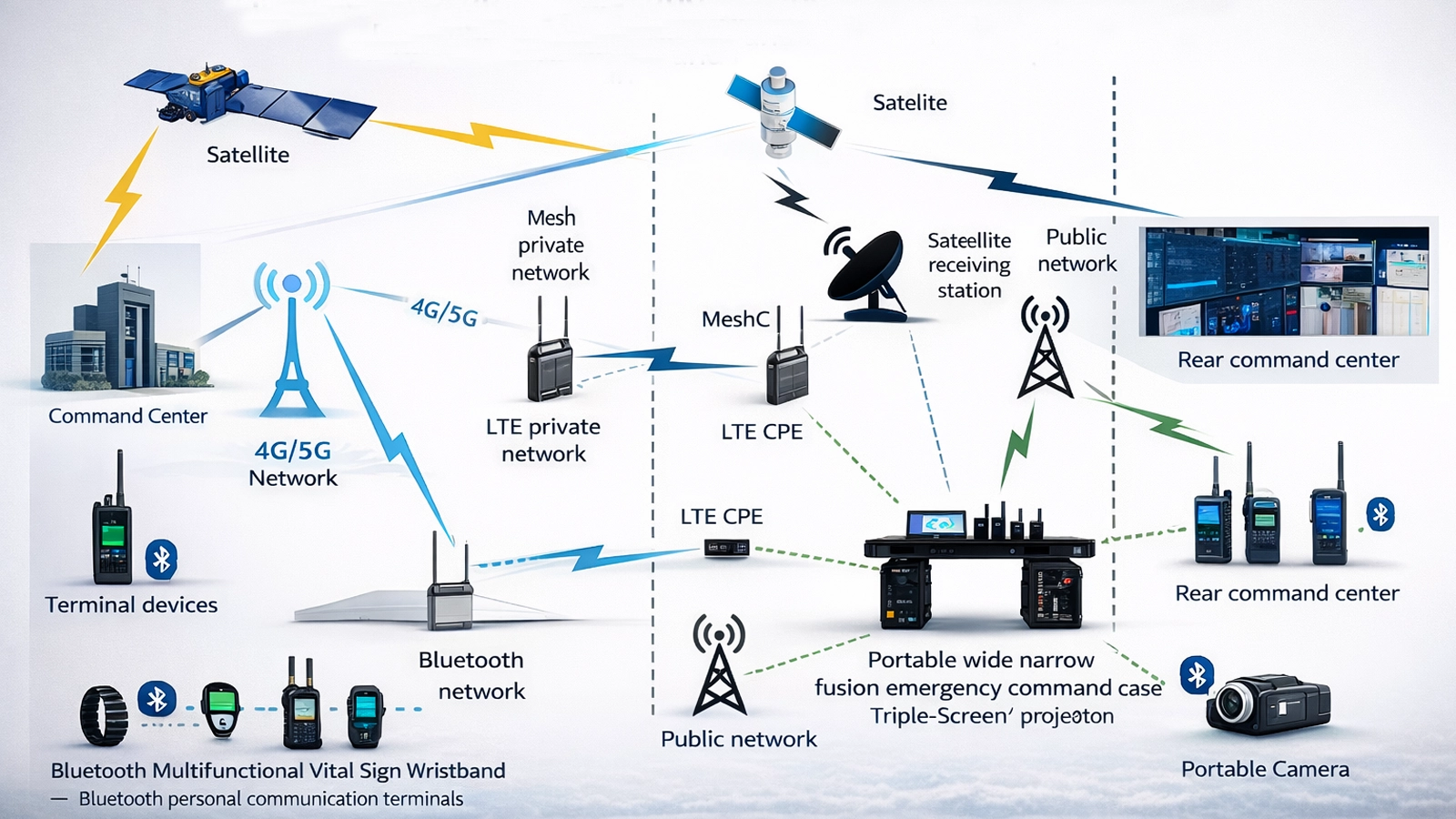

• Hybrid: Many emergency networks use a hybrid architecture – for example, combining a mesh network with a cellular or satellite link to the command center. This allows local connectivity with redundancy to a broader network.
• Distributed: In very large emergencies, a distributed architecture with multiple command centers or data centers may be needed to handle the load. This is often the case in nationwide or international disasters.

The architecture must be chosen based on the specific needs of the emergency and the available resources. For instance, a city-wide emergency might use a hierarchical model with a central command center connected to fire stations, police precincts, etc., whereas a rural search and rescue might use a mesh architecture with nodes spread out in the field.

2. Redundancy and Failover

Redundancy is a critical element of any emergency communication system. Multiple communication links should be provided so that if one fails, another can take over. This can include redundant networks (e.g. a cellular link and a satellite link as backups for each other), redundant power supplies for equipment, and backup servers or data centers.
For example, if a primary cellular connection is lost during a hurricane, responders should have a backup satellite connection to stay in touch. Similarly, if a key server goes down, there should be a secondary server ready to take its place. Redundancy also extends to physical infrastructure – having multiple entry points for network connections and multiple routes for data transmission can prevent a single point of failure.

3. Scalability

The system must be able to scale to accommodate increasing numbers of users and data as the emergency evolves. This means the network should be able to handle a surge in communication volume (e.g. thousands of emergency calls or messages at once) and an increase in the number of devices connected (hundreds of responders and vehicles in the field). Scalability can be achieved through load balancing, cloud-based services, and modular hardware.
For instance, using a cloud-based communication platform means that as more users join (like additional fire departments or military units arriving to assist), the system can automatically scale to include them without requiring additional physical infrastructure. Similarly, having modular mesh routers allows adding nodes to expand coverage in large disaster areas.

4. Encryption and Security

Security is paramount in emergency communications. All data transmitted should be encrypted to prevent interception. This includes voice communications (using encrypted radio channels or encrypted VoIP), data transmissions (using VPNs or encrypted protocols), and even the storage of sensitive information (like personal data of victims or emergency plans) should be protected.
Key security measures include using strong encryption algorithms (like AES for data encryption), implementing secure protocols (like TLS for internet communication), and access controls that limit who can view or send information. Security should also extend to the physical devices – ensuring that radios and computers used in the field are protected against tampering or theft.
Additionally, network security in emergency situations can be challenging. Agencies must be prepared for potential cyber threats (such as hacking or malware) and have incident response plans in place to mitigate any security breaches.

5. Compatibility and Interoperability

An emergency response system must support interoperability between different agencies and technologies. This means ensuring that different radio systems can communicate, different software platforms can exchange data, and different devices (from different manufacturers) can work together. Standards are crucial here – for example, using a common radio frequency band or a common protocol for data sharing (like APCO P25 for digital radio, or standard APIs for software integration).
Agencies often use protocols like DMR or P25 for radio interoperability, and they may use common databases or formats for data (like GeoJSON for maps, or standardized incident reporting formats). Interoperability testing and training are also important – responders should practice using each other’s equipment and systems to ensure smooth collaboration during an actual emergency.

6. Remote Access and Connectivity

Many emergency response tasks are now done remotely, especially in large-scale disasters. Remote access refers to the ability of off-site personnel (like disaster coordinators, experts, or even family members of victims) to connect to the emergency network and participate in the response. This could involve remote command centers, telemedicine consultations, or remote monitoring of sensors.
To enable remote access, the system should have secure VPN connections, cloud-based collaboration tools, and possibly remote control capabilities for equipment (like controlling a drone or activating a remote sensor). It’s also important to ensure that remote connections are secure and that the remote users do not inadvertently disrupt the local operations.
In summary, the architecture of an emergency response communication solution must be robust, flexible, and secure. By considering these architectural aspects – from network design and redundancy to security and interoperability – agencies can build a system that can effectively handle the challenges of an emergency, providing reliable communication when it’s needed most.

Case Studies and Examples

To illustrate the effectiveness of an emergency response communication solution, we examine several real-world case studies. These examples highlight how different communication technologies and systems were used in actual emergencies to coordinate response efforts and save lives:

1. Hurricane Irma (2017)

Background: Hurricane Irma, one of the most powerful Atlantic hurricanes on record, struck the Caribbean and Florida in September 2017. It caused widespread destruction, knocking out power and communication infrastructure in many areas.
Communication Challenges: The hurricane severely damaged cellular towers and power grids in the affected regions. This led to widespread loss of mobile phone service and internet access. First responders and residents were cut off from normal communication channels.
Response and Communication Solution: In the aftermath of Irma, a multi-faceted communication solution was employed:

• Satellite Phones and Internet: Many first responders and aid workers relied on satellite phones and satellite internet devices to stay in touch. For example, the U.S. Coast Guard and the Red Cross used satellite phones to coordinate search and rescue missions and relief efforts. Companies like Iridium and Inmarsat provided connectivity to areas where no other networks were working.
• Wireless Mesh Networks: In some impacted areas, local authorities set up wireless mesh networks using portable routers. These networks allowed emergency personnel to share information among themselves. For instance, in the Florida Keys, a wireless mesh network was established to connect fire departments and police stations after cellular service was lost.
• Public Alerting: Public alerting systems were used extensively. In the US, wireless emergency alerts (WEA) were sent to cell phones in affected areas, warning residents of dangerous conditions and evacuation orders. NOAA Weather Radios also broadcast critical updates.
• Collaboration Software: Responders used secure messaging apps and cloud-based collaboration tools to share information. For example, the Florida Division of Emergency Management used a mobile app and web portal to coordinate resources and track the status of various agencies.

Outcome: Despite the extensive damage, the combination of these communication methods helped save lives and coordinate the response. First responders were able to communicate with each other and with command centers, enabling effective evacuation and rescue operations. The public was warned through various channels, reducing casualties. The use of satellite communication was particularly crucial – it allowed relief organizations to maintain contact with remote areas that were cut off from the mainland. This case demonstrates the importance of having multiple communication layers in place for disaster resilience.

2. Camp Fire (2018)

Background: The Camp Fire, a devastating wildfire in California in November 2018, destroyed the town of Paradise and became the deadliest and most destructive wildfire in California history.
Communication Challenges: The fire spread rapidly, cutting off power lines and cell towers. Within hours, thousands of residents were left without power and phone service. This isolation made it extremely difficult for emergency responders to coordinate with each other and with the public.
Response and Communication Solution: The response to the Camp Fire relied on a combination of traditional and innovative communication techniques:

• UHF/VHF Radios: Firefighters continued to use their UHF/VHF radios to communicate with each other on the ground. These radios were crucial for coordinating firefighting efforts in the field, as they did not rely on cell towers. However, the vast area of the fire meant that radio range was limited, so firefighters often had to establish temporary radio repeaters and use helicopters to relay information between teams.
• Public Alerting and Social Media: Authorities used sirens and public address systems in the area to alert residents to evacuate. They also turned to social media and community alert apps to keep the public informed. The Butte County Sheriff’s Office used a Facebook page to provide live updates and location information to the public. Some residents also used apps like Nextdoor to communicate with neighbors.
• Satellite and Mobile Broadband: In the days following the fire, some residents were able to use satellite phones or satellite internet devices to contact loved ones. For example, the American Red Cross provided satellite phones to residents who had lost everything. Additionally, some communities that had installed emergency broadband (like Starlink) were able to get internet access, enabling them to send and receive information.
• Collaboration Software: Fire agencies and the Incident Command System (ICS) used software tools to manage the incident. They maintained a common operating picture using mapping software and dashboards, which were updated in real time. This helped in coordinating resources and ensuring that all teams had the latest information.

Outcome: The Camp Fire highlighted the importance of redundancy in communication. While cell towers were down, the use of radios and other systems allowed firefighters to continue their work. Public alerting and social media kept the public informed, though some residents still struggled to get information in the immediate aftermath. The incident also underscored the need for emergency broadband – several communities with Starlink or similar services were able to maintain some connectivity, which aided in both communication and coordination. Overall, the response was hampered by the lack of communication, but agencies adapted by using whatever means were available, including innovative solutions like community apps and satellite devices. This case study shows the importance of having not only traditional systems but also modern tools and backup communication methods for wildfire response.

3. Coronavirus Pandemic (2020)

Background: The COVID-19 pandemic, declared in early 2020, presented a unique emergency requiring new forms of communication. Governments worldwide had to communicate with the public about health risks, lockdowns, and vaccination efforts, while also coordinating healthcare responses and research.
Communication Challenges: The pandemic necessitated frequent and urgent communication with the public and between healthcare professionals. It also involved managing vast amounts of data and coordinating across borders. Traditional public alert systems were used, but the scale of the crisis meant new methods were needed, such as mass media campaigns, public health hotlines, and digital platforms for remote consultations.
Response and Communication Solution: The response to COVID-19 involved a broad communication strategy:

• Public Alerting and Media: Governments issued regular public alerts via TV, radio, and social media about health advisories, testing sites, and vaccination sites. For example, many countries used emergency broadcast systems to announce lockdowns and mask mandates. Public health officials also used social media to debunk misinformation and provide accurate information to the public.
• Telehealth and Remote Communication: Healthcare providers rapidly adopted telehealth platforms to allow remote consultations with patients, reducing the need for in-person visits and minimizing the spread of the virus. Tools like Zoom and Microsoft Teams were used for virtual meetings between doctors, nurses, and patients, as well as for remote training and coordination among healthcare teams.
• Data Communication: Public health agencies used data systems to track the spread of the virus. This included online dashboards showing infection rates, hospitalization counts, and vaccination progress. These dashboards were accessible to the public and to decision-makers, enabling transparency and informed decision-making.
• Interoperability and Collaboration: International collaboration was key, and communication tools were used to share information between countries. For instance, WHO (World Health Organization) used video conferences and online platforms to coordinate global response efforts. Public health officials from different countries shared data and best practices in real time.

Outcome: The COVID-19 response demonstrated the importance of effective communication in a public health emergency. Public alerting helped to ensure that people followed guidelines, which was crucial in slowing the spread of the virus. Telehealth innovations allowed medical care to continue without overwhelming hospitals. The use of data and dashboards provided transparency and helped governments make data-driven decisions. However, the pandemic also highlighted some communication challenges – misinformation spread rapidly on social media, and not all populations had equal access to digital communication tools. Nonetheless, the widespread adoption of digital communication technologies during this crisis paved the way for more robust emergency communication strategies in the future, especially in health emergencies.

4. Turkey Earthquake (2023)

Background: A devastating earthquake struck southern Turkey and northern Syria in February 2023, killing tens of thousands and causing widespread destruction. The region’s infrastructure was severely damaged, including many communication towers.
Communication Challenges: The earthquake cut off phone service and internet in large areas. Many residents were trapped in collapsed buildings with no way to call for help. Coordinating rescue efforts across the affected region was extremely difficult without communication.
Response and Communication Solution: The response to the Turkey-Syria earthquake utilized a mix of technologies to re-establish communication:

• Satellite Phones and Mesh Networks: Aid organizations and rescue teams brought satellite phones and set up wireless mesh networks to connect with the outside world. Satellite phones were used by rescuers to call for additional resources and report on conditions. Mesh networks were set up in affected neighborhoods to allow survivors to send text messages to each other or to emergency services.
• Public Alerting and Social Media: Authorities used sirens and public announcements to warn residents in the immediate aftermath. They also leveraged social media and messaging apps to gather information and provide updates. For example, Turkish authorities used Twitter to coordinate search and rescue operations and to appeal for international help.
• Mobile Ad-hoc Networks: In some neighborhoods, local volunteers formed mobile ad-hoc networks using their smartphones. These networks allowed residents to communicate within their immediate vicinity, which was vital for finding survivors and coordinating local relief efforts.
• International Coordination: International agencies (like the Red Cross) used secure communication platforms to coordinate aid efforts. They maintained communication via encrypted messaging and video calls, enabling coordination between teams on the ground and those planning from afar.

Outcome: The earthquake highlighted the critical role of communication in search and rescue. Thanks to the use of satellite phones and mesh networks, many survivors were reached and rescued, and vital information was relayed back to command centers. Public alerting ensured that people knew to evacuate, although in some cases the rapid collapse caught many by surprise. Social media proved to be both a blessing and a curse – it helped coordinate global aid and locate survivors, but it also contributed to misinformation and scams. The case underscores the need for robust emergency communication plans, including having backup systems (like satellite and mesh) ready to deploy immediately after a disaster. It also shows how community-driven communication (using smartphones) can supplement official channels in the chaos of an earthquake.

5. Hurricane Florence (2018)

Background: Hurricane Florence, a Category 4 hurricane that struck the Carolinas in September 2018, brought heavy rain and flooding. It caused significant damage to infrastructure, including many cell towers.
Communication Challenges: The hurricane knocked out cell service in large areas, making it difficult for residents to communicate with each other or with emergency services. Power outages also affected landline and internet services.
Response and Communication Solution: The response to Hurricane Florence used several communication methods:

• Wireless Mesh and Public Wi-Fi: Local governments deployed wireless mesh routers in affected areas to provide internet access to first responders and the public. Some communities set up temporary public Wi-Fi hotspots using portable routers, allowing residents to connect to the internet to send messages or check emergency updates.
• Satellite Communication: Satellite phones and devices were used by emergency management teams to maintain communication with command centers and to coordinate relief efforts. The U.S. Coast Guard and other agencies relied on satellite communications to navigate and respond to stranded residents.
• Public Alerting and Community Radio: Emergency alerts were sent via NOAA Weather Radio and wireless emergency alerts (WEA) to warn residents of the storm and evacuation orders. Community radio stations also broadcast important information, especially in areas where power and internet were down.
• Mobile Apps and Social Media: The National Hurricane Center and local agencies used mobile apps and social media to provide real-time updates. For example, the City of Wilmington, NC, used a community app to send out alerts and location information to residents. Social media was used to coordinate volunteer efforts and share information about shelters.

Outcome: Despite the extensive damage, the combination of these communication methods helped mitigate the impact. First responders were able to stay connected and coordinate rescues, and the public was informed through multiple channels. The use of wireless mesh networks and public Wi-Fi was particularly effective in providing internet access in areas where it was lost. Public alerting ensured that residents were aware of the dangers and evacuation orders. However, the sheer scale of the storm meant that not all areas were reached immediately, and some residents still faced challenges getting information. The Florence case study reinforces the importance of having both traditional and modern communication tools ready for hurricane response – from radios and sirens to mesh networks and mobile apps – to ensure that information flows freely when it’s needed most.

Conclusion

Effective emergency response communication is the lifeblood of any disaster management effort. As we have seen, a robust emergency response communication solution must integrate multiple technologies and systems to ensure that information flows freely in times of crisis. From wireless mesh networks that provide local connectivity when everything else fails, to satellite systems that extend coverage to the farthest corners of a disaster zone, and from traditional UHF radios that enable immediate voice coordination on the scene, to modern software tools that enhance situational awareness and collaboration – each component plays a crucial role.
Key requirements such as resilience, speed, coverage, interoperability, security, adaptability, and user-friendliness must be met through careful architecture and deployment. By designing networks with redundancy and failover, ensuring interoperability across different agencies and technologies, and using secure and user-friendly systems, emergency responders can significantly improve their ability to save lives and property.
Real-world case studies further illustrate the importance of these solutions. Whether it’s the resilience of wireless mesh in Hurricane Irma, the use of satellite and social media in the Camp Fire, the innovation in telehealth during the COVID-19 pandemic, the rapid deployment of communication tools in the Turkey earthquake, or the multifaceted approach in Hurricane Florence – in every scenario, the availability of reliable communication made a difference. It enabled first responders to coordinate, informed the public, and provided a lifeline for those in need.
In conclusion, an emergency response communication solution is not a single technology but a comprehensive strategy. It combines hardware, software, and human coordination to ensure that during the chaos of an emergency, information is shared swiftly and accurately. By continuously improving and adapting these solutions – investing in backup systems, training responders on new tools, and learning from past experiences – emergency management agencies can build a communication infrastructure that is truly prepared for any crisis. In the end, the goal is clear: to enable communication that saves lives, protects communities, and facilitates the efficient and effective response to emergencies.
